Glove, Condom, Balloon Conveyor Chain
Spare Parts

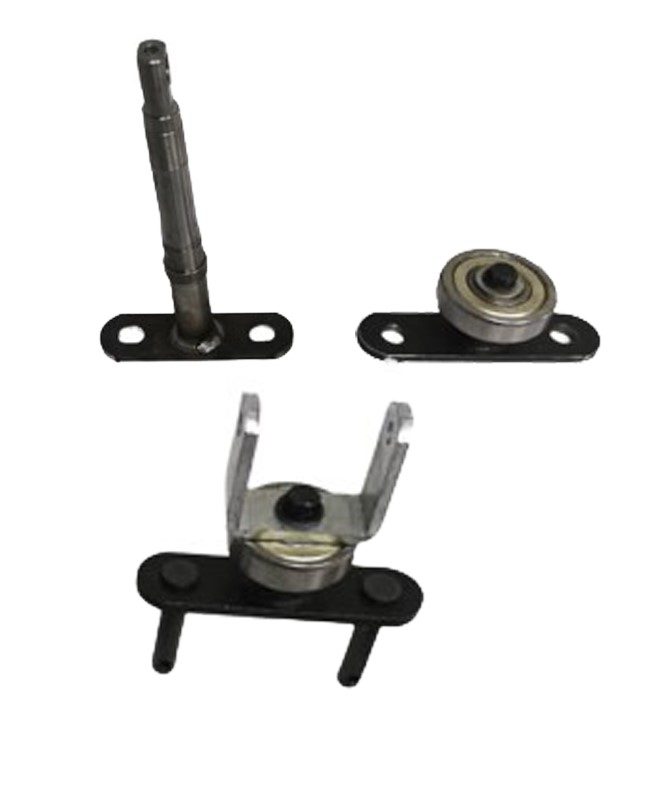

Attachment Plate
Specification of Products
Model Pin Diameter Width Effective Length Pitch
KD6-100L-AP 14-18 76 80-110
KD10-100L-ATA / ATB 14 47 80-110
KD10-100L-ATA / ATB 16 197 95-110
KD10-95L-ATA / ATB 16 222 95-110

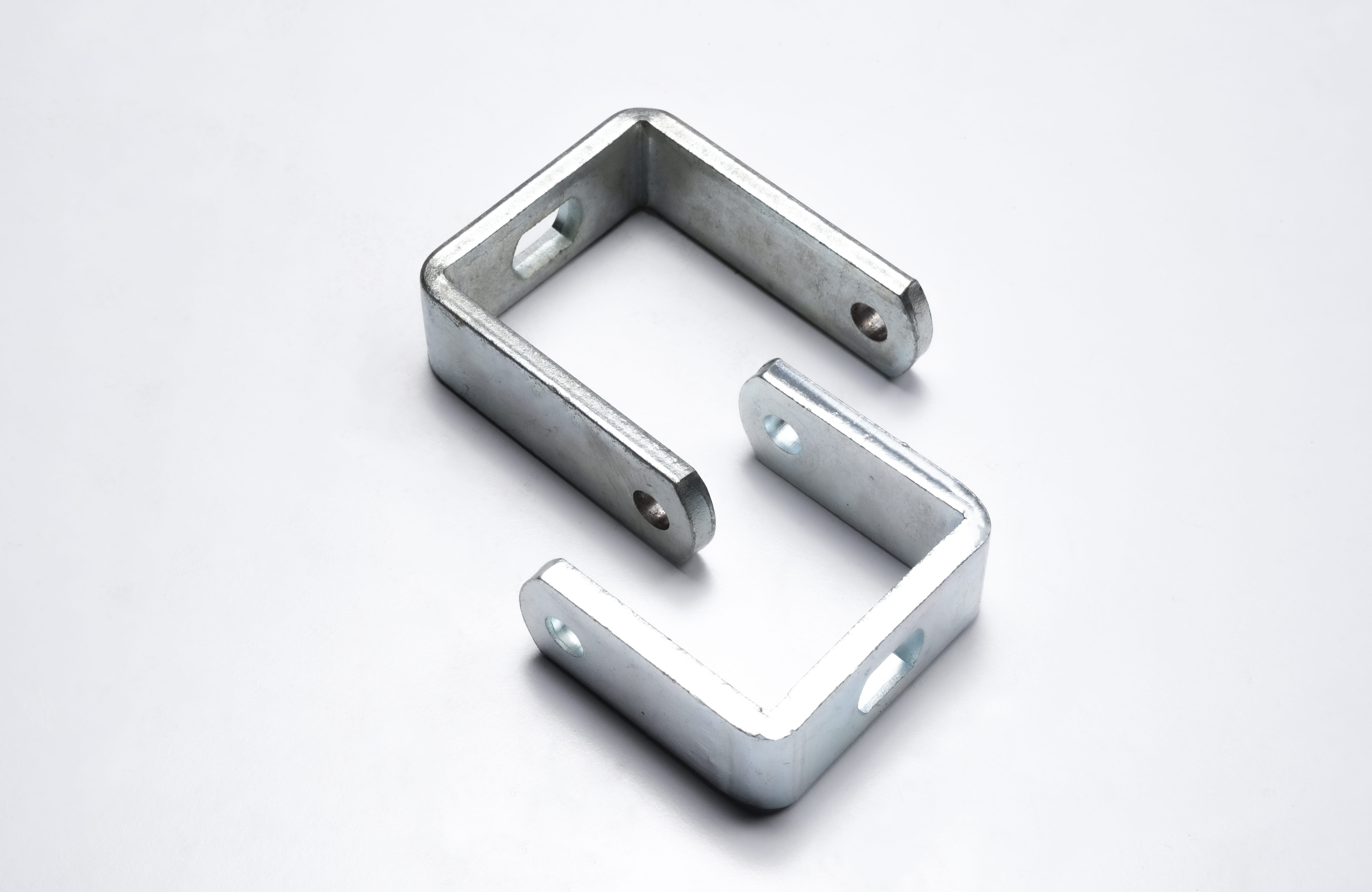

U Bracket
Specification of Products
Model Width Effective Length Material
UB-36-MS 36.0 36.5 Mild Steel
UB-58-MS 58.0 36.5 Mild Steel
58.0 50.0 Mild Steel
58.0 56.0 Mild Steel

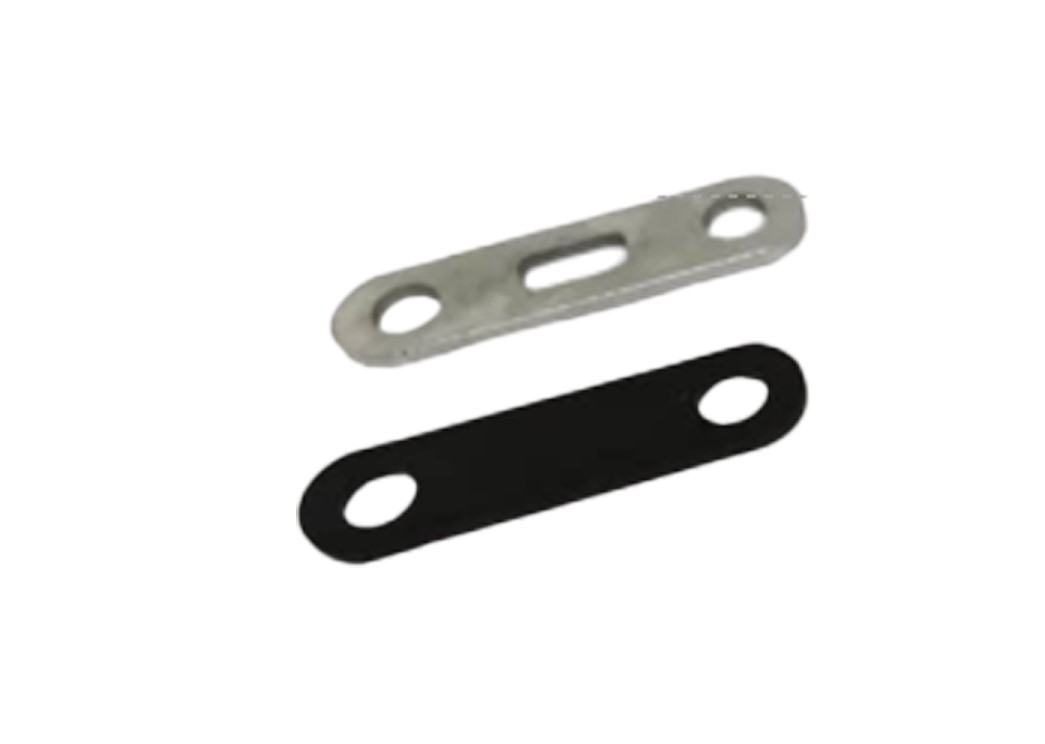

Link Plate
Specification of Products
Model Pitch Thickness Width
KD8-80L-LP 80.0 6.5 38
KD10-90L-LP 90.0 7.0 42
KD10-100L-LP 100.0 8.0 42
KD10-110L-LP 110.0 8.0 42

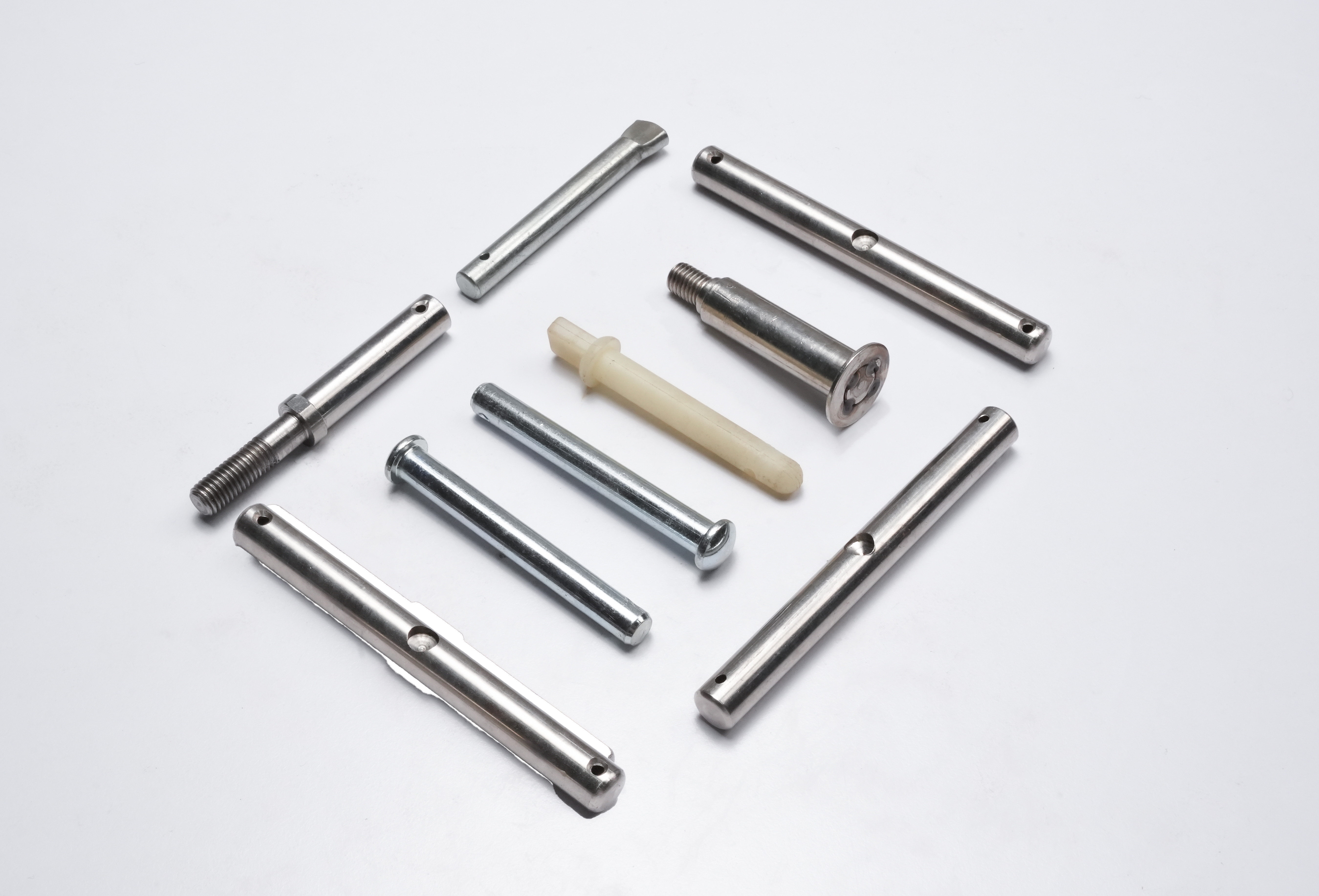

Rivet Pin
Specification of Products
Model Diameter Effective Length Material
KD6-RP-SS 12.7 109.5 Stainless Steel
KD6-RP-MS 10.0 78.0 Mild Steel
RP3-N2 8.0 78.0 Nylon

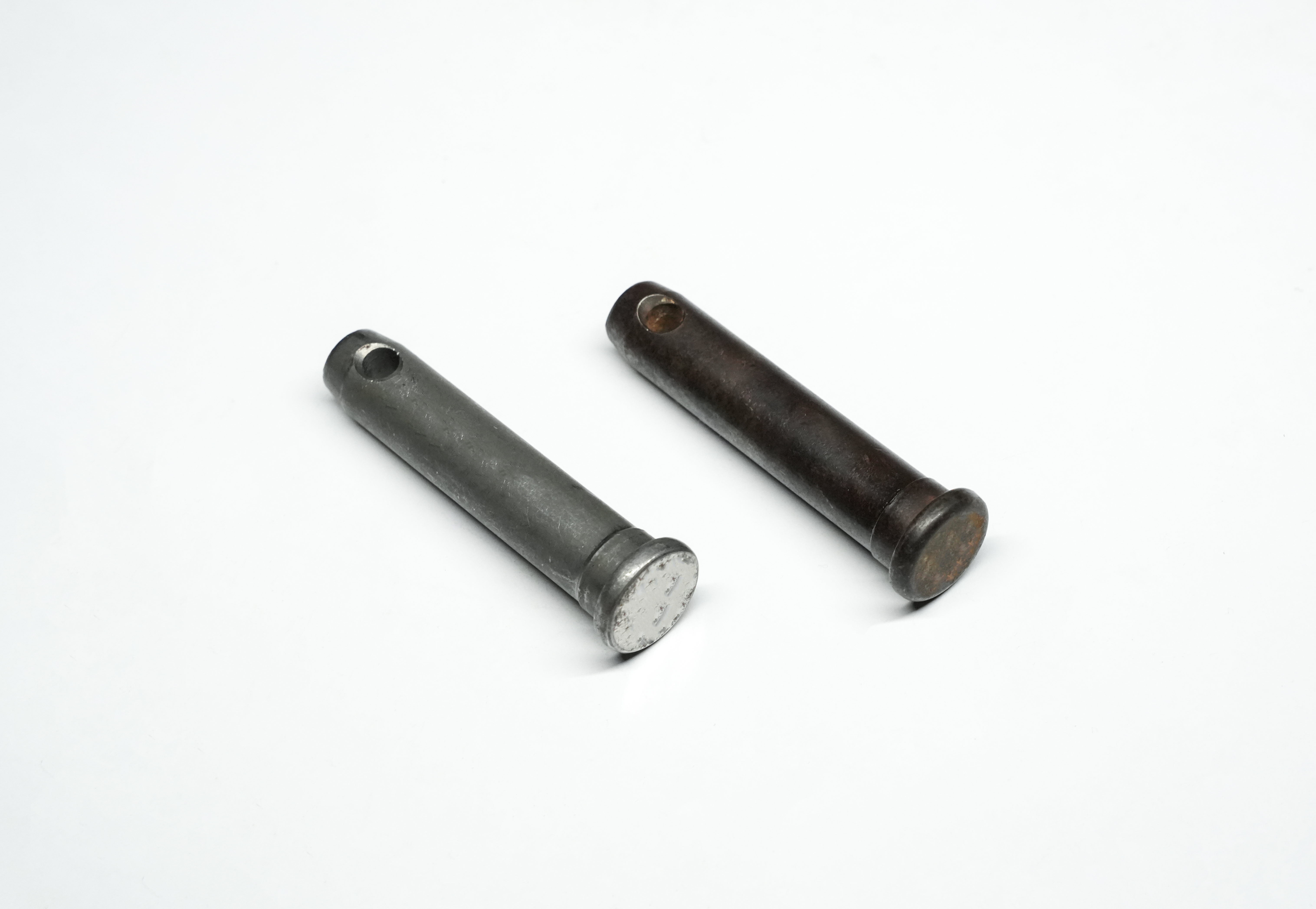

Chain Pin
Specification of Products
Model Diameter Effective Length Material
KD4-CP 15.8 61.0 Mild Steel
KD10-CP 14.0 59.0 Mild Steel
KD10-CP 19.0 63.0 Mild Steel

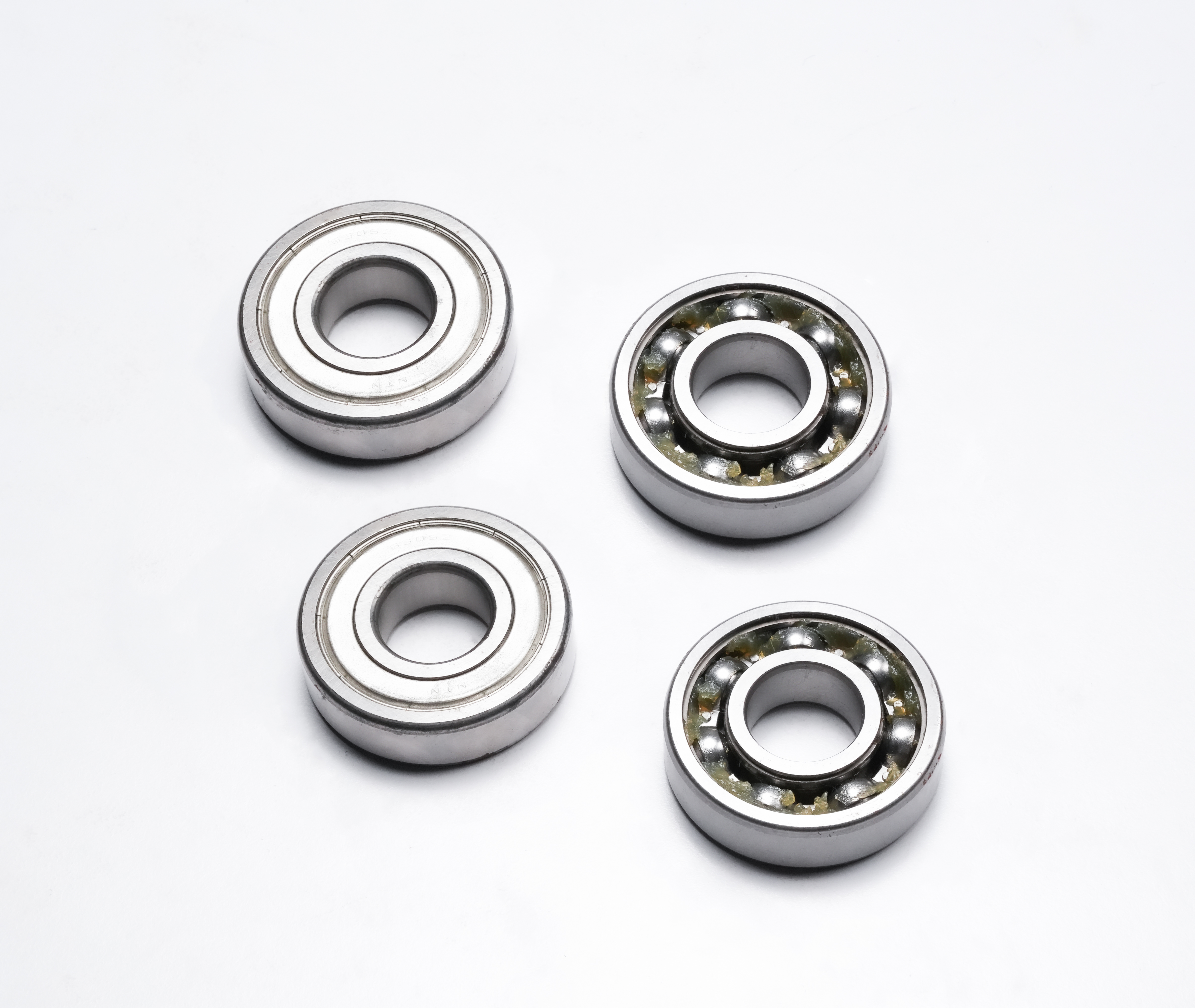

Bearing
Specification of Products
Model Outer Diameter Inner Diameter Height
6305-Z/ZZ/1HS/2RS 62 25 17
6328-Z/ZZ/1HS/2RS 68 28 18

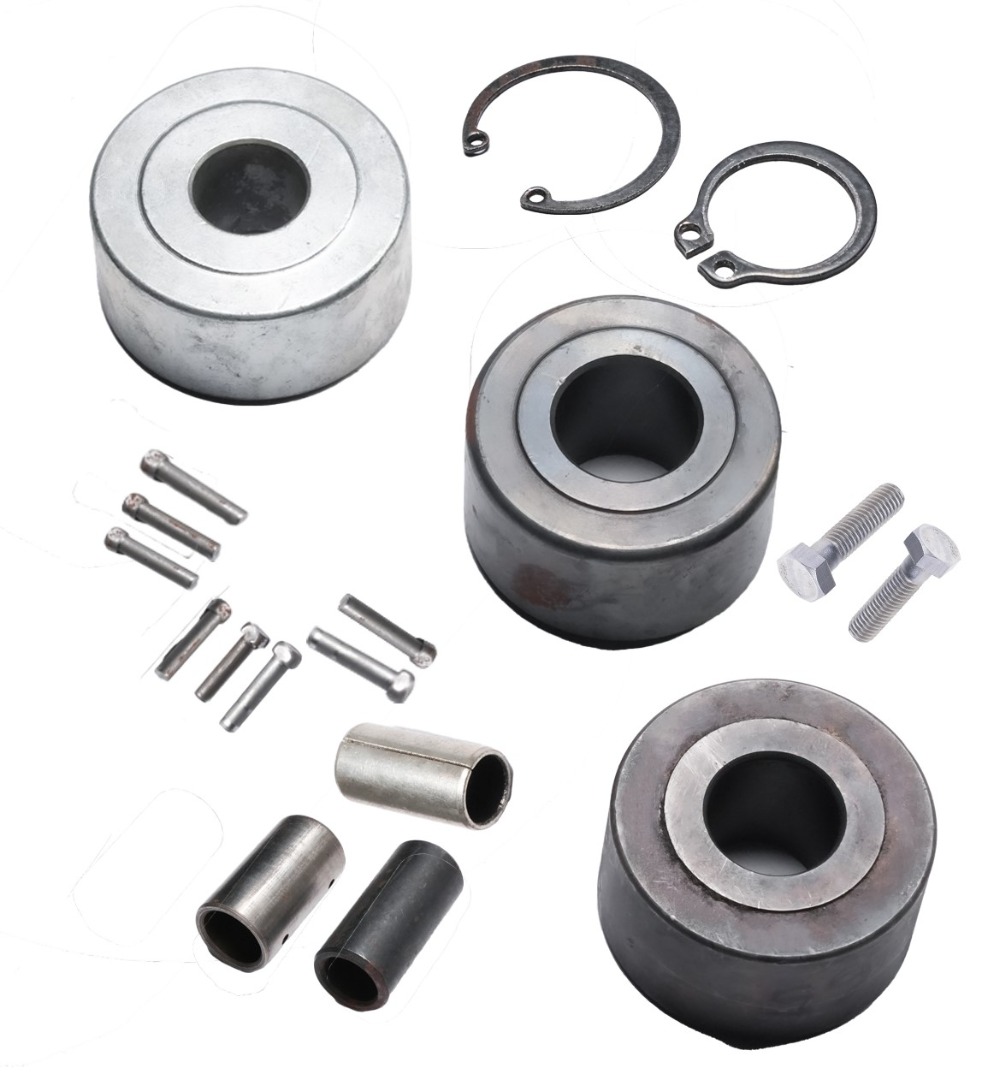

Others
Specification of Products
Chain Roller, Hollow Bush, Cotter Pin, Circlip, Bolt
