Glove, Condom, Balloon Machine Spare Parts
Spare Parts

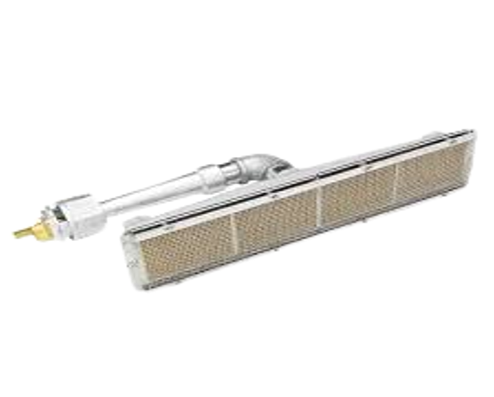

Infra Red Burner
Specification of Products
Model : D-802 (LPG/NPG) , D-1602 (LPG/NPG)
Heating Capacity : 2030 Kcal/Hr , 5400 Kcal/Hr
Weight : 5.8Kg , 8.0 Kg
Joint : 3/8 " , 3/8 "

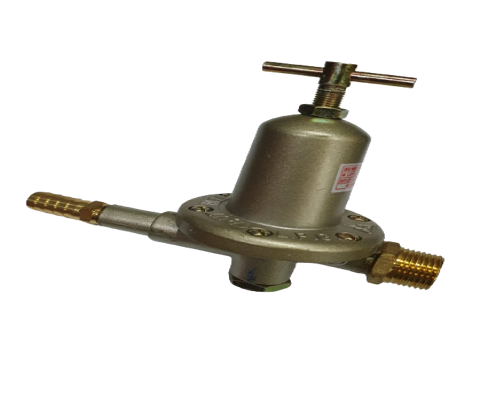

Butwell Gas Regulator
Specification of Products
Model : ST 9012
In Let : 0.7 - 15.6KG / CM²
Out Let : 0.2 - 2.5KG / CM²
Q : 0 - 8 KG / H

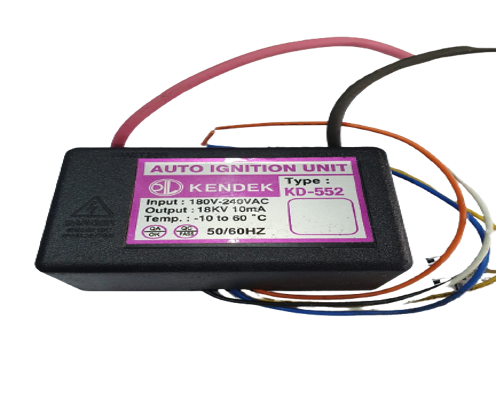

Ignition Control Transformer
Specification of Products
Type : KD-552
Input : 180V - 240VAC
Output : 20KV 10mA
Temperature : -10 TO 60°C
Frequency : 50Hz / 60Hz

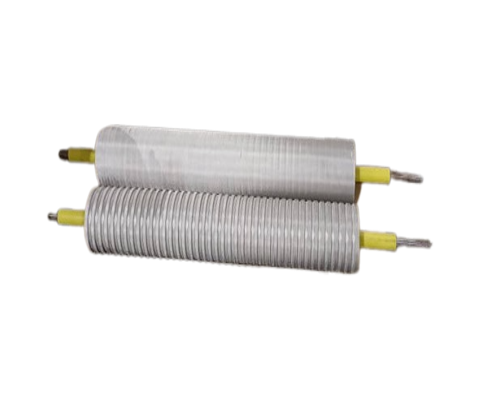

Stacking Roller With Anti-static Clotch (Smooth & Groove)
Specification of Products
Frame Structure : Alluminium
Cloth Material : Oxford Conductive Cloth
Cloth Thickness : 2MM
Silicon Hardness : Shore Hardness 60-70

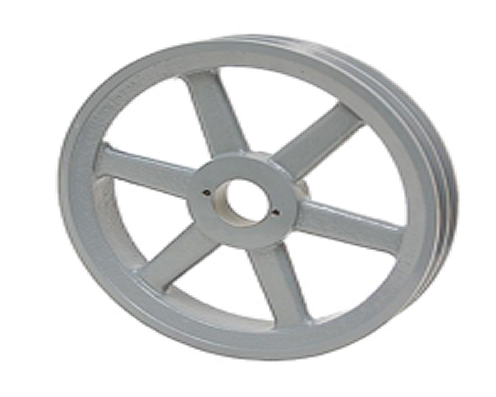

Pulley
Specification of Products
Model : Normal / Tapper Lock
Material : Cast Iron / Ms
Type : A, B, C, D
Groove : 1, 2, 3
Size : Various Size, 3 "- 20 "

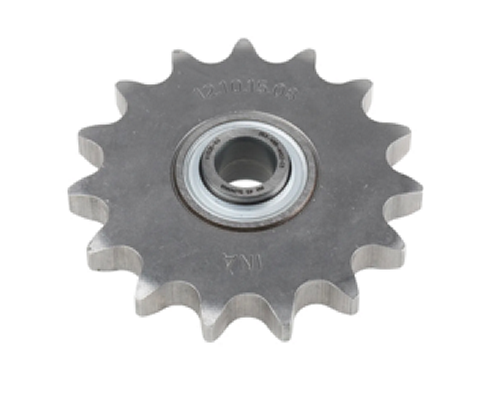

RS Sprocket
Specification of Products
Material : Cast Iron / Ms
Size : Rs40, Rs50, Rs60, Rs80, Rs100, Rs120, Rs160,
Rs200
Teeth : 12t to 75t

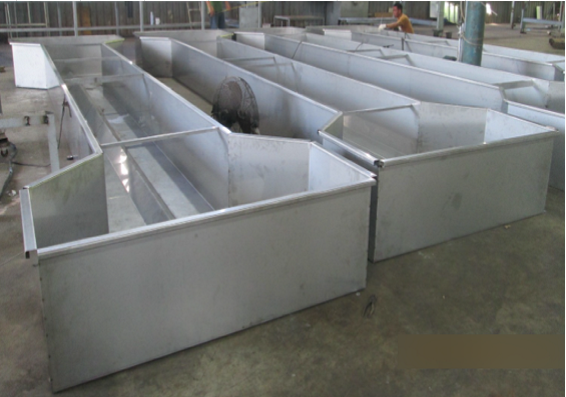

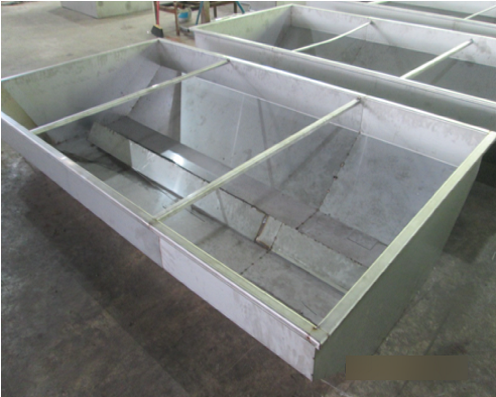

Rinse Tank
Specification of Products
Body Material : Ss304
Capacity : 1.5m3, 3.3m3
Type of Tank : Rectangular Shape
Dimension : 2000mm (L) x 1524mm (W) x 500mm (H) - Single Former
3000mm (L) x 2000mm (W) x 550mm (H) - Double Former
Heating Element : 1 " Ss304 sch10 Heating Coil / Infrared Burner
Drain Pipe : 2 " Ss304 Pipe
Tank Accessories : Adjustable Overflow Compartment

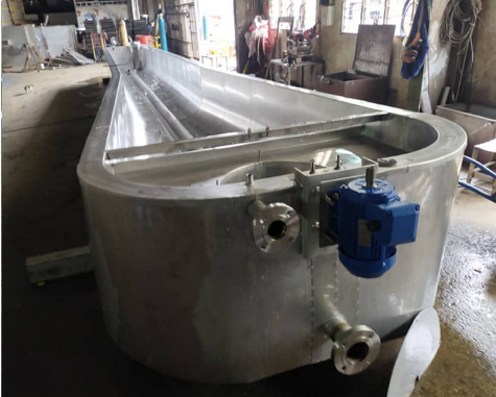

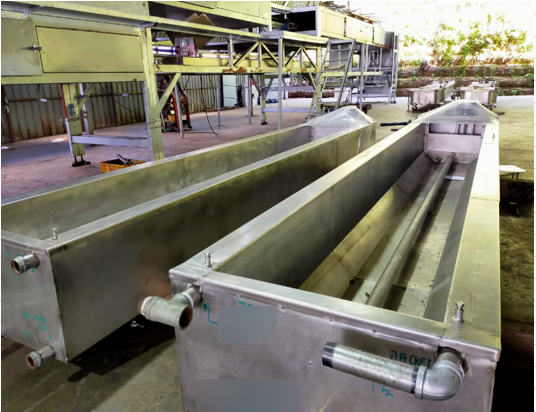

Coagulant Dipping Tank
Specification of Products
Body Material : Ss304
Capacity : 1.8m3 , 5.4m3
Type of Tank : Rectangular Shape
Dimension : 6000mm (L) x 600mm (W) x 500mm (H) - Single Former
7500mm (L) x 1200mm (W) x 600mm (H) - Double Former
Heating Element : 1 " Ss 304 sch10 Heating Coil / Hot Water Jacketed
Drain Pipe : 2 " Ss 304 Pipe
Drive Mechanism : 2HP / 415V / 4P / 50Hz Induction Motor
Pre & Post Leaching Tank
Specification of Products
Body Material : Ss304
Capacity : 1.5m3, 3.3m3
Type of Tank : Rectangular Shape
Dimension : 2000mm (L) x 1524mm (W) x 500mm (H) - Single Former
3000mm (L) x 2000mm (W) x 550mm (H) - Double Former
Heating Element : 1 " Ss304 sch10 Heating Coil / Infrared Burner
Drain Pipe : 2 " Ss304 Pipe
Tank Accessories : Adjustable Overflow Compartment
Polymer Dipping Tank
Specification of Products
Body Material : Ss304
Capacity : 1.8m3 , 3m3
Type of Tank : Rectangular Shape
Dimension : 5000mm (L) x 600mm (W) x 500mm (H) - Single Former
5000mm (L) x 1200mm (W) x 500mm (H) - Double Former
Cooling System : Chill Water System
Drain Pipe : 2 " Ss304 Pipe
Drive Mechanism : 2HP / 415V / 4P / 50Hz Induction Motor

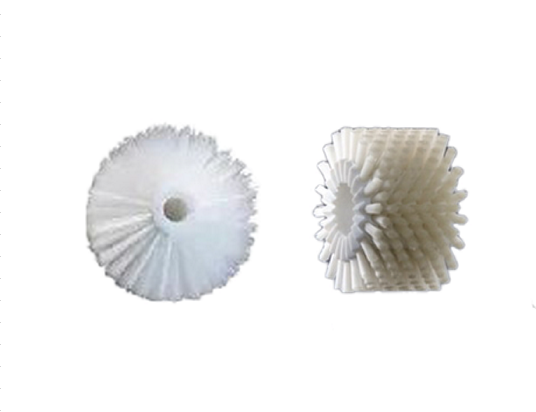

Brush
Specification of Products
Model Material Size
Beading Brush Nylon 66 OD100 X ID26 X BR0.4 X CD50 X CL52
OD80 X ID26 X BR0.4 X CD50 X CL52
OD75 X ID26 X BR0.4 X CD50 X CL52
Cuff Brush Nylon 66 OD150 X ID26 X BR0.6 X CD62 X CL52

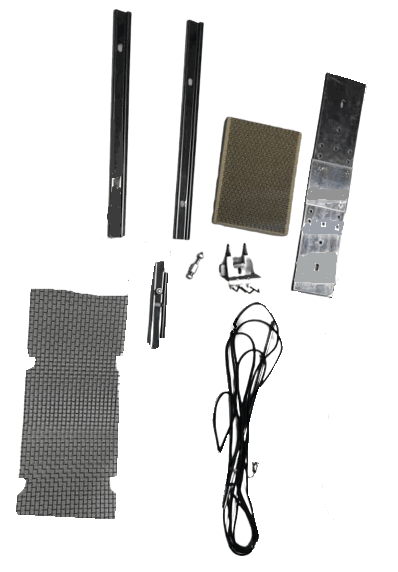

Others
Specification of Products
Sparker 3 Pin, Thermocouple Sensor, Burner Plate, Inner Plate, 1.5 / 1.8 cm Bolt & Nut,
Bar Plate Left & Right, Bar Plate Side 4 ", Stainless Steel Net
